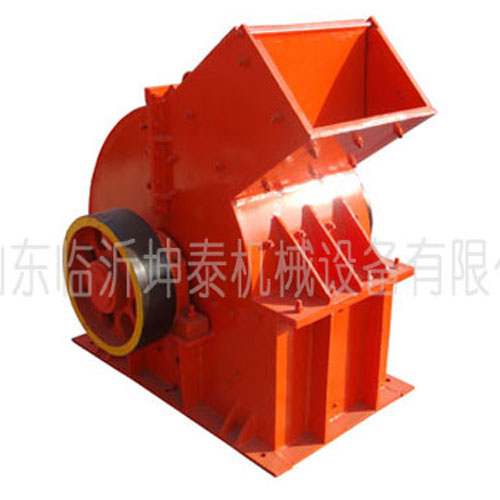

Product Name:Hammer crusher

Hammer crusher
  • Hammer crusher
  • Hammer crusher
Product Description
Hammer crusher is introduced
Hammer crusher are less investment, quick effect of choice for small sand production line equipment. Hammer crusher is directly to the largest size is 600-1800 mm material crushing to 25 or a broken under 25 mm with crusher. Hammer crusher is applicable to the cement, chemical, electric power, metallurgy and other industrial sectors crushing medium hardness materials, such as limestone, slag, coke, coal and other materials in the broken and finely homework.
The working principle of the hammer crusher
Hammer crusher for main working parts with a hammer, hammer head) of the rotor. The rotor consists of main shaft, hammer of disk, pin shaft and hammer head. Hammer crusher is mainly completed by impact energy and broken material operation. Hammer crusher is working, the motor drives the rotor high-speed rotation, the material into the crusher chamber evenly and high-speed rotary hammer impact, cut apart the material to the material being broken, at the same time, the material's own gravity makes material from the high-speed rotating hammer head to the body panel, sieve, resistance is greater than the screen hole size of materials on the sieve plate continues to hit by the hammer and the grinding, crushing to the discharging granularity until the final through the sieve plate outside.
Hammer crusher product parameters:

規(guī)格型號

最大進(jìn)料邊長(mm)

出料粒度(mm)

處理能力
(t/h)

電機(jī)功率(kw)

外形尺寸
(mm)

重 量
(t)

PC0808

400

≤40

30-50

45

1518*1710*1600

4

PC0810

500

≤40

60-90

75

1918*1850*1904

5.1

PC1010

600

≤40

80-120

90-110

1978*2089*2022

5.3

PC1210

600

≤40

90-150

110-132

1978*2260*2057

6.8

PC1312

700

≤40

120-180

132-160

2072*2322*2217

8.5

PC1513

700

≤40

130-250

160-180

2236*2596*2340

12.5

PC1515

800

≤70

180-350

220-250

2612*2780*2861

19

PC1815

800

≤70

200-400

250-280

2808*2878*3080

24

PC1817

900

≤70

280-480

2*160

3022*3200*3168

28

PC2018

900

≤70

350-550

2*220

3222*3400*3368

37

PC2022

1000

≤70

400-600

2*315

3622*3500*3768

130


















Tags: hammer crusher, the secondary crusher
