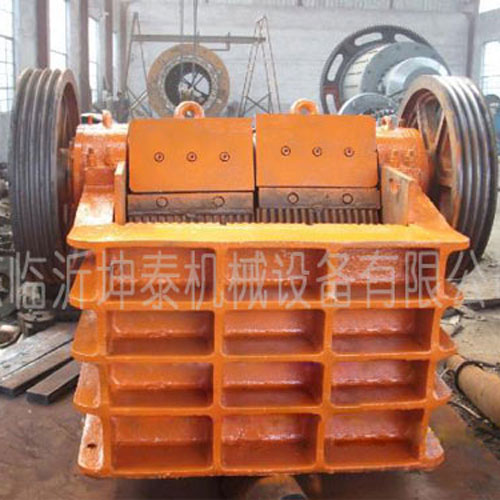

Product Name:PE600x900 secondary crusher

PE600x900 secondary crusher
  • PE600x900 secondary crusher
  • PE600x900 secondary crusher
Product Description


Introduction of jaw crusher
Jaw crusher (jaw broken), jaw crusher is one of the most commonly used crushing equipment in mining production, mainly used in metallurgy, mine, chemical, cement, construction, refractory materials and ceramic lamp industry, used for the compressive strength no more than 320 million pieces in all kinds of materials, coarse crushing homework, big crushing ratio, high yield, uniform end product size, simple structure, reliable operation, easy maintenance, economic operation, etc.
Working principle of the jaw crusher:
PE, PEX series jaw crusher is with motor as power, through the motor pulley, eccentric shaft driven by a triangle and the sheave, the moving jaw according to the desired trajectory for reciprocating motion, thus will enter the fixed jaw, jaw and side guard plate of crushing chamber of the material to be broken, and through the lower part of the discharging mouth of the finished material. This series of jaw crusher broken way for dynamic JiYaXing, motor drive belt and pulley, make through eccentric shaft dynamic jaw movement up and down, when moving jaw rises between the bracket and dynamic jaw Angle, so as to promote dynamic jaw plate to the fixed jaw close, at the same time the material will be squeezed, rub multiple crushing, grinding, etc. When the moving jaw downward, bracket and dynamic jaw Angle between smaller, under the action of moving jaw in a bar, spring away from fixed jaw plate, now broken material from crushing cavity mouth eduction, as the motor turns continuously broken mobile jaw for periodic crushing and discharging, realize batch production.
Jaw crusher performance characteristics:
1. Simple in structure, convenient in use and maintenance; Stable performance, low operating costs; Big crushing ratio,
2. The crushing cavity depth and no dead zone, to improve the ability to feed and production;
3. The broken than big, product size uniform,
4. Gasket type discharging mouth adjusting device, convenient and reliable, the adjusting range is big, to increase the flexibility of equipment;
Lubrication system safe and reliable, parts easy to change, small maintenance workload;
6. Simple structure, reliable operation, low operating costs;
7. The equipment and energy saving: single energy-saving 15% ~ 30%, system energy saving more than double;
8. Discharging mouth wide adjustment range, can meet the requirements of different users;
9. Low noise, little dust.
Jaw crusher product parameters:

型號 進料口尺寸
(mm)
最大進
料粒度
(mm)
排料口調(diào)
整范圍
(mm)
處理能力
(t/h)
偏心軸轉(zhuǎn)速
(r/min)
電動機功率
(kw)
總重量
(t)
外形尺寸
(長×寬×高)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
